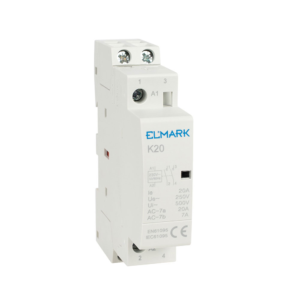

ΡΕΛΕ ΡΑΓΑΣ K20 25A 230V 2NO

ΡΕΛΕ ΡΑΓΑΣ K20 25A 230V 2NO

Technical characteristics of K series:
– Rated current: 20-63A
– Operation class: АС 7a
– Rated operating voltage of the controlling coil: 230V АC;50/60Hz
– Rated operating voltage of the power circuit: up to 690V АС
– Number of power contacts: 2-4
– Insulation voltage : 690V
– Surge voltage wear resistance: >8000V
– Operating temperature: -10 to +65°C
– Maximum altitude: 2000m

n

Advantages:
– High reliability of the current parameters
– Secure switching ON or separation of the power contacts
– Compact sizes
– Low levels of operational noise
– Options for selection ot the type of power contacts
– Resistant to UV rays

n

Functions:
– Switching ON/OFF of electrical circuits under load
– Developing of systems for control of consumers
– Operational element in control boards

n

Applications:
– Industry
– Administrative and public buildings

n

Mounting: On a DIN rail or vertical position with maximum gradient of ±5°

n

Standards: EN61095; EMC; LVD
