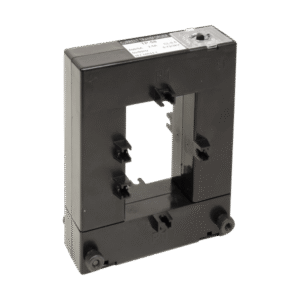

ΜΕΤΑΣΧΗΜΑΤΙΣΤΗΣ ΡΕΥΜΑΤΟΣ MES-30 50/5 ΚΛΑΣΗ 0.5

ΜΕΤΑΣΧΗΜΑΤΙΣΤΗΣ ΡΕΥΜΑΤΟΣ MES-30 50/5 ΚΛΑΣΗ 0.5

Technical characteristics:
– Maximum operating voltage: 720V,50 Hz
– Acceptable deviation of the operating current: 1.2 х In
– Input current: 50-1200А
– Output current: 5А
– Surge voltage wear resistance: 4000V,50Hz (1 min)
– Operating temperature: -5° to 65°С
– Humidity: 35-85% RH
– Precision class: 0.5

n

Mounting: Vertically or horizontally to the power supplying rails according to the opening of the transformer

n

Standards: EN61010-1; EN60044-1; EN60044-6
