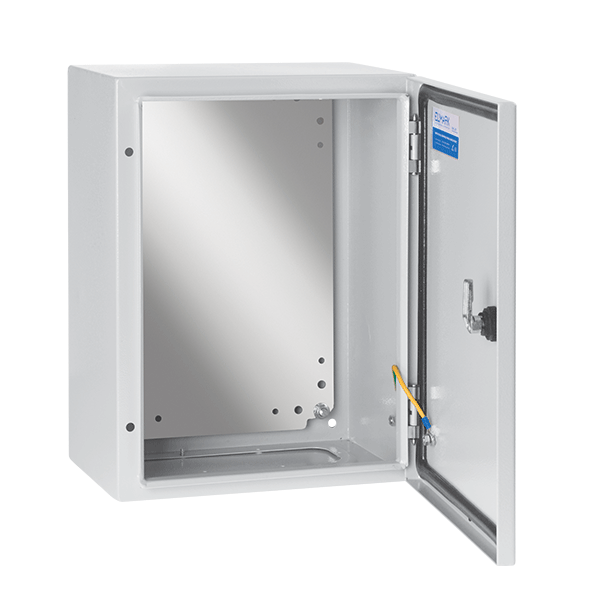

ΜΕΤΑΛΛΙΚΟΣ ΠΙΝΑΚΑΣ JXF 80/60/25

ΜΕΤΑΛΛΙΚΟΣ ΠΙΝΑΚΑΣ JXF 80/60/25

Technical characteristics:
– Rated voltage: up to 1000V
– Maximum current: up to 1250А
– Dimensions:
   = Height: from 250 mm to 1800mm
   = Width: from 250mm to 10000mm
   = Depth: 150mm/ 200mm /250mm /300mm
– Mounting plate for fixing of the equipment
– Cover for the input-output conductors
– Grounding dowel pin
– Material: Steel
– IP code: IP65

n

Advantages:
– Option to change the opening direction
– The anti-corrosion coating prevents from rust forming
– Supplied with metal plate for fixing the electrical devices
– Locking mechanism which prevents from free access to the electrical materials mounted in the board

n

Functions:
– Provide safe from atmospheric conditions and mechanical intervention environment of the equipment mounted in the board
– Used for protection, providing safety from accidental contact to the current leading parts if working close to the board
– Prevent from accidental technological switching
– Used in building, domestic and office automation
– Used in cases requiring mounting the board outdoors

n

Applications:
– Industry
– Production
– Residential and office buildings
– Outdoor installation

n

Mounting: Vertically on a flat surface

n

Standards: EN62208; EN60439-1; EN60439-3
