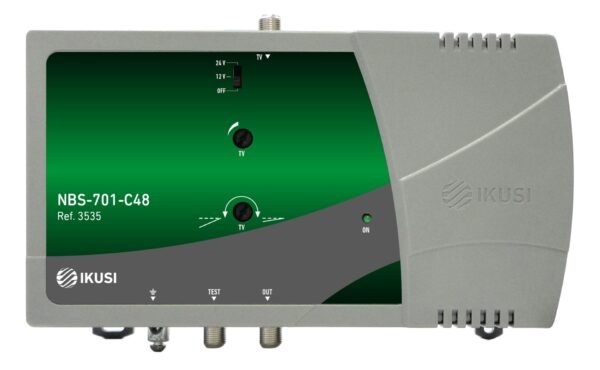

ΕΝΙΣΧ. ΚΕΝ. IKUSI NBS 701-C48 IN TV AMPL.

ΕΝΙΣΧ. ΚΕΝ. IKUSI NBS 701-C48 IN TV AMPL.

Τεχνικά Χαρακτηριστικά

Model:
NBS701-C48

Frequency Range:
47~694 MHz

Inputs / Outputs:
1/1

Gain & Flatness
Gain: 35 dB & Flatness: ±2 dB

Gain Adjustment
0~15 dB

Slope control range
0~12 dB

Response flatness
±2 dB

Max. Output Level
115 dBμV (DIN-45004B IMD -60 dB)

Noise Figure
6 dB

Return Loss
Input/output Return Loss: 10 dB

Voltage / Current preampifier mast
12-24 V / 100 mA

Mains Supply Voltage
110-240 VAC (+10%  -15%)

Consumption
5 Watts

Connectors
Input/Output: F – female

Output Test
-30dB Port

Nominal Impedance
75 Ohm for input and output

Dimensions
210 x 140 x 50 mm
